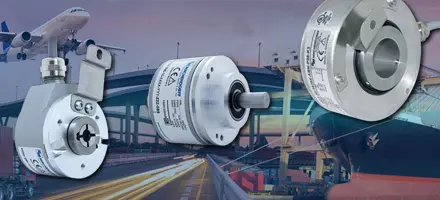

Anwendungsberichte inkrementale Drehgeber
Informes de aplicaciones
Download
Download

The right technology for every application

With the large selection of pulse numbers, output circuits, connector and cable varieties, protection classes and temperature ranges, you will find precisely the right incremental encoder from our extensive range.

  • TTL, HTL, sin/cos
  • High-performance LED or precise magnetic technology
  • High shaft load up to 500 N
  • Preventive maintenance with early warning output
  • Copes with tough industry and automotive conditions

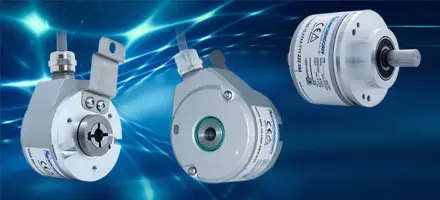

WDGI encoder - the incremental industry standard

  • Robust standard industrial encoder
  • Die-cast aluminium housing with particularly eco-friendly powder coating
  • Up to 25,000 pulses thanks to high-quality electronics
  • Protection class of IP67; shaft sealet to IP65
  • Immunity to interference
  • Extremely high bearing load: up to 500 N in axial / radial direction
  • Maximum mechanical and electrical safety
  • Full connection protection at 10 VDC up to 30 VDC
  • High output frequency of up to 600 kHz / 2 MHz
  • Operating temperature with connector outlet: -40 °C to +85 °C
  • Optional: pressure compensation membrane

More information

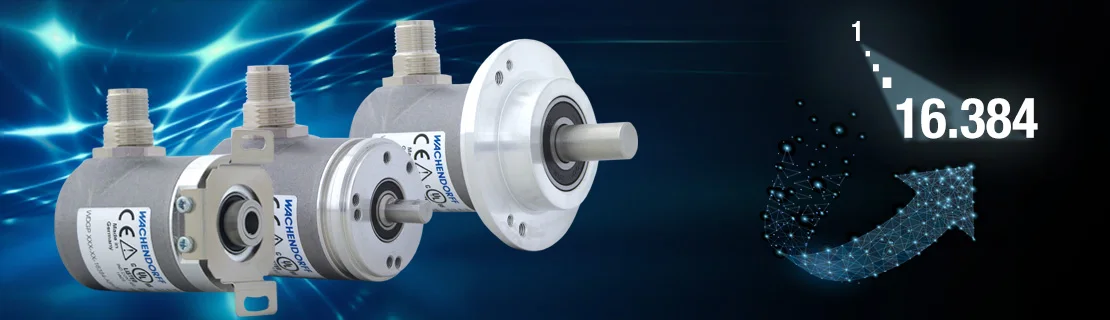

Incremental Encoder WDGP - Any number of pulses available up to 16,384 ppr
  • Housing 36 mm diameter
  • Protection class IP67, at the shaft input IP65
  • High output frequency up to 1 MHz
  • Zero pulse can be set
  • Reverse polarity and short circuit protection at 4.75 VDC to 32 VDC

More information
