• Ball bearing drill protection
• Measuring rope (stainless steel)
• Bushing
• Quick and easy mounting

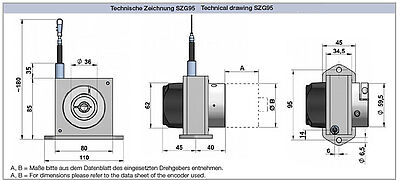

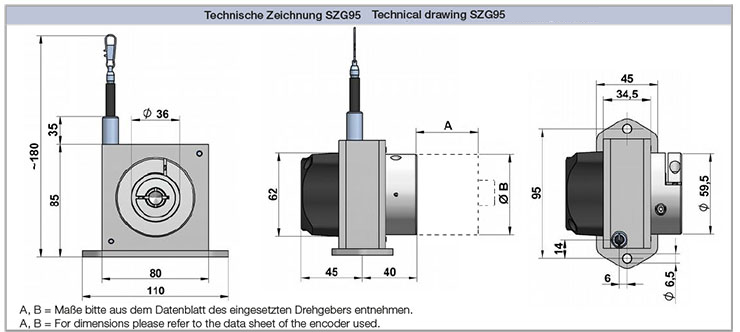

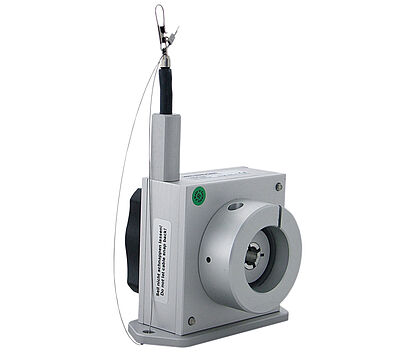

The draw-wire system SZG95 can be used even where space is tight, thanks to its compact dimensions.
The SZG95 can be mounted quickly and with its highly precise mechanics provides reliable accurate length measurement. The intelligent spring-suspension and the stainless-steel wire cable guarantee long-service life, even in difficult operating conditions.
The mechanics have been perfectly matched to the encoder models WDGI58B or WDGA58B encoders. The encoder is already installed.


Order No. for SZG95 without Encoder: SZG950300UZVK

Example order No. for SZG95 with Encoder: s. datasheet

Request STEP file
(Please define an encoder type and enter the corresponding order number of the SZG in your STEP file request)

0 - 3000 mm

Calculation of Resolution:
Incremental e.g. 2500 pulses and 3 m wire length

Calculation of pulses/mm:
Pulses/Rope sheave circumference = Pulses/mm
e.g. 2500 / 200 = 12.5 Pulses/mm

Absolute e.g. 12 bit single-turn and 3 m wire length

Calculation of steps/mm: (x = Single-turn resolution)
2^X/Rope sheave circumference = Steps/mm
e.g. 2¹² / 200 = 4096 / 200 = 20.5 Steps/mm
